D-RTK 3 Multifunctional Station

Name: D-RTK 3 Multifunctional Station
SKU: 293965
Price: 2205.0 CAD
Availability: InStock

CAD $2,205

In stock

Serves as a base station for centimeter-level positioning of multiple drones simultaneously, or as a relay station to extend drone range.

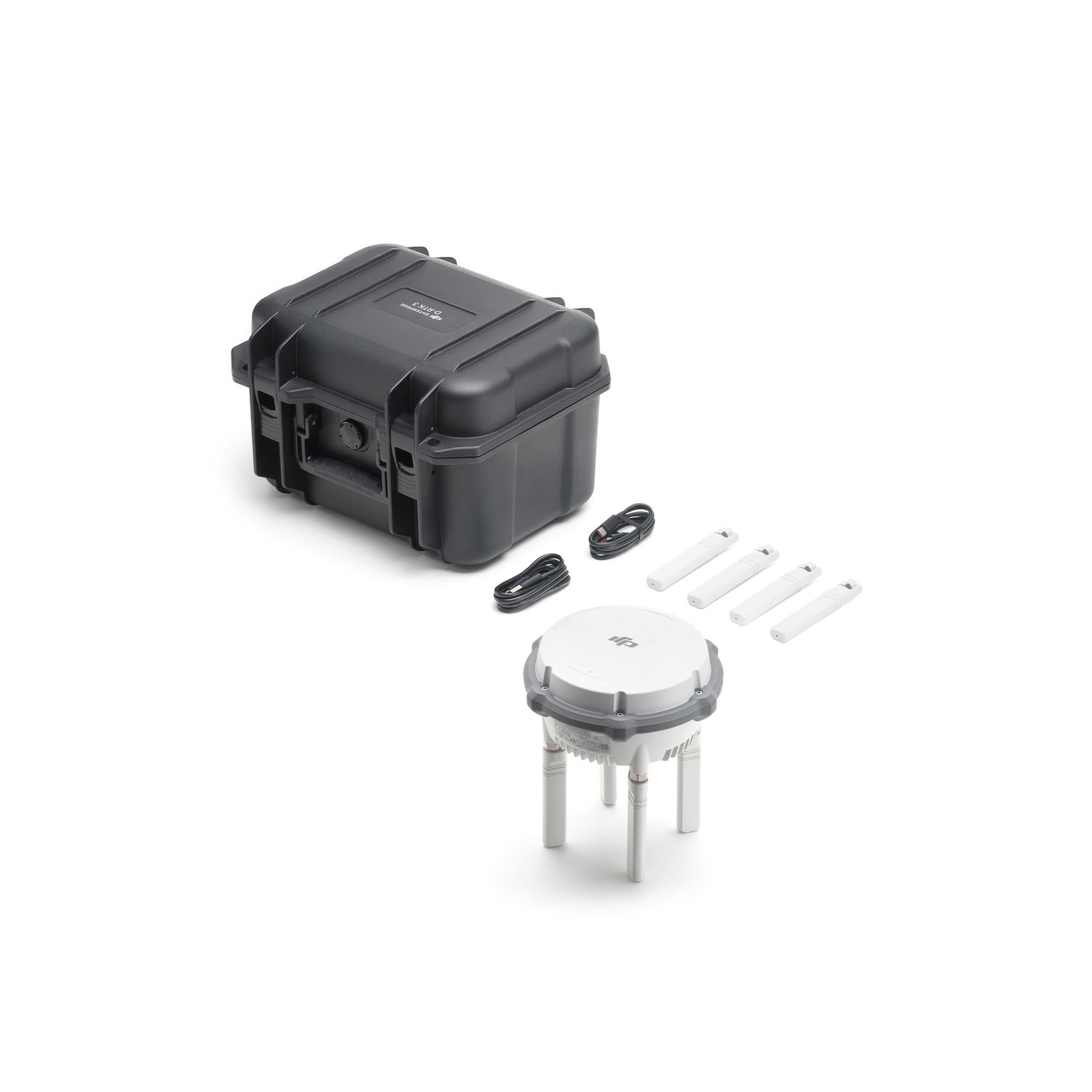

In the Box

Specifications

GNSS Frequency

GPS: L1C/A, L2C, L5

BDS: B1I, B2I, B3I, B1C, B2a, B2b

Galileo: E1, E5a, E5b, E6

GLONASS: L1, L2

QZSS: L1C/A, L2C, L5

L-Band

Rover Station Mode Accuracy

Static Measurement

Horizontal: 0.8 cm + 1 ppm (RMS)

Vertical: 1.5 cm + 1 ppm (RMS)

Tilt Measurement

Angle Range: 0°to 60°

Horizontal: 8 mm + 0.7 mm/° tilt (accuracy <2 cm within 30°)

Max Transmission Distance (in Relay Station Mode, unobstructed, free of interference)

FCC:

15 km between the aircraft and the relay station

1 km between the relay station and the remote controller

SRRC:

12 km between the aircraft and the relay station

1 km between the relay station and the remote controller

CE:

8 km between the aircraft and the relay station

300 m between the relay station and the remote controller

Protection Rating: IP67 (station only)

Diameter: 163 × 89 mm (without OcuSync Directional Antennas)

D-RTK 3 Multifunctional Station
